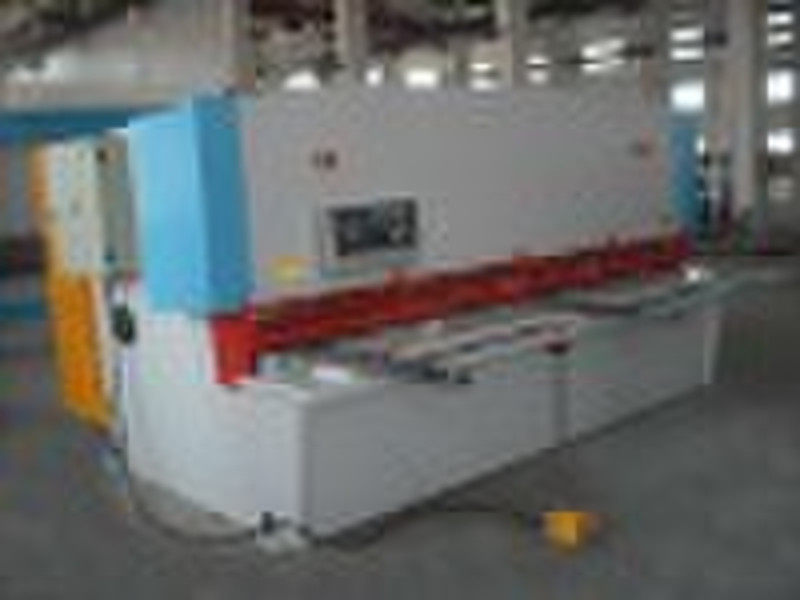

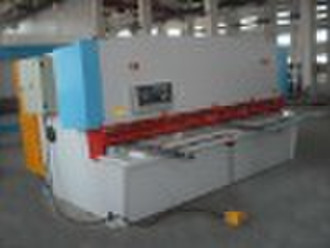

HSS series hydraulic swing beam shear machine

Parameters of Hydraulic Swing Beam Shear machine Model ShearingThickness ShearingWidth ShearingAngle NumberofStroke BackgaugeRange MotorPower GearPump mm mm (°) Min-1 mm kw ml 4×2000 4 2000 1°30 20 20-600 4 10 4×2500 4 2500 1°30 20 20-600 4 10 4×3200 4 3200 1°30 18 20-600 5.5 10 4×4000 4 4000 1°30 16 20-600 5.5 10 6×2000 6 2000 1°30 20 20-600 7.5 25 6×2500 6 2500 1°30 18 20-600 7.5 25 6×3200 6 3200 1°30 14 20-600 7.5 25 6×4000 6 4000 1°30 14 20-600 7.5 25 8×2500 8 2500 1°30 12 20-600 7.5 25 8×3200 8 3200 1°30 10 20-600 11 25 8×4000 8 4000 1°30 8 20-600 11 25 10×3200 10 3200 1°30 10 20-600 15 25 10×4000 10 4000 1°30 7 20-600 15 25
